#25 Holddown clamps Dia 7.6mm hole with dowel pin
Quick Details
Place of Origin: Guangdong, China (Mainland)
Model Number: CATOS-HD#25 Dia 7.6mm hole
Usage: Postion and Fixed
Material: plastic ,aluminum and iron
Surface Treatment: electroplated nickel
Structure: Wave solder Clamp
Standard or Nonstandard: Standard
Product Parts: A set of two parts
Type:Buckle for top plate and wave solder pallet
Application: Wave solder pallet accessories
Service: technical drawing is available
Sample: available for free
Certificate: FTS report
Specifications
1.Free samples
2.Hight temperature resistent.
3.Dowel pin for top hat fixture and Hung for main wave solder pallet
4.Connecting wave solder pallet and top hat.
I.Features
1) .Designed specifically for use in wave solder operations
2) .Mostly made from plastic and aluminum etc.
3).Working temperature: 200degree, max 280degree (10~20s).
4).It is fixed on Top Hat and wave solder pallets
5). The part which positioning wave solder pallets and cover plate fixtures/Top Hat of pressing components .
II.Function and Application
#25 plastic part is fixed on wave solder pallets and #25 dowel pin was fixed on top hat .#25 Dia 7.6mm will be used together with #25 Dia6.1mm hole and #22.The action is that by using different diamter part to reach precise and fast insert -in when top hat position on main wave solder pallet.It can keep right direction.

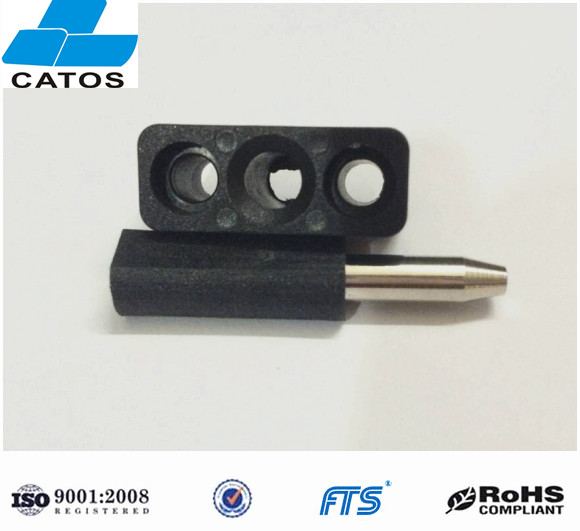

Remarks: below picture part is #25 without surface treatment.If clients need,the aluminum part on dowel pin can have natural anodix oxidation.Current dowel pin is made two part( one part:aluminum material and another part:iron with electroplated nickel).If client required stainless steel material for dowel pin,we can customize for clients specially.Hope clients provide drawing for us.Appreciated.
III.Structure
|
MATERIAL : |
Material: plastic ,aluminum and iron
|
|
TEMPERATURE RATING : |
(>200° C) |
|
DRAWING : |
Available for you
|
IV.Service:
1).Technical Drawing of #25 Dia 7.6mm hole holddowns is available.
2).CATOS markets products for the PCB Assembly tooling industry such as fixings, hold downs and clamps for solder pallets / fixtures.
V.Package Process:
1).500pcs as a bag, with packed PE bag
2).Then put into 400mm x 300mm x 300mm paper carton
3).Finally,used PE protective film packed.
Warm Notes:clients'suggestion is welcomed.
Samples and Product technical drawing is available to you for free,your inquiry is welcome! Any questions please contact me,i will do my best to serve you.
|
