#23 Buckle for Top Hat Fixture
Quick Details
Place of Origin: Guangdong, China (Mainland)
Model Number: CATOS-HD#23
Usage: Postion and Fixed
Material: Aluminum
Surface Treatment: black anodic oxidation
Structure: Wave Clamp
Standard or Nonstandard: Standard
Product Parts: A set of one part
Type:Buckle for top plate and wave solder pallet
Application: Wave solder pallet accessories
Weight of a set: 35g
Service: technical drawing is available
Sample: available for free
Certificate: FTS report
Specifications
1.Free samples
2.Hight temperature resistent.
3.Buckle for top hat fixture
4.Connecting wave solder pallet and top hat.
I.Features
1) .Designed specifically for use in wave solder operations
2) .Mostly made from molded and aluminum
3).Working temperature: 200degree, max 280degree (10~20s).
4).It is fixed on Top Hat and wave solder pallets
5). The buckle which positioning wave solder pallets and cover plate fixtures/Top Hat of pressing components .
II.Function and Application
#23 Buckle for Top Hat Fixture in PCBA, Holddowns is positioning wave solder pallets and cover plate fixtures/Top Hat of pressing components

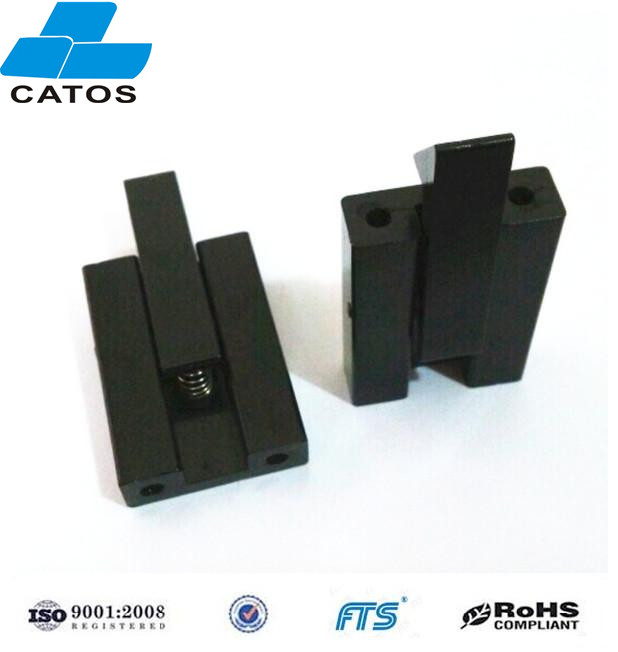

Remarks: below picture part is #23 without surface treatment.In order to make this parts better and long used life ,we improved it with black anodix oxidation.
III.Structure
|
MATERIAL : |
High temperature polymer |
|
TEMPERATURE RATING : |
(>200° C) |
|
DRAWING : |
Available for you
|
IV.Service:
1).Technical Drawing of #23 holddowns is available.
2).CATOS markets products for the PCB Assembly tooling industry such as fixings, hold downs and clamps for solder pallets / fixtures.
V.Package Process:
1).500pcs as a bag, with packed PE bag
2).Then put into 400mm x 300mm x 300mm paper carton
3).Finally,used PE protective film packed.
Warm Notes:clients'suggestion is welcomed.
Samples and Product technical drawing is available to you for free,your inquiry is welcome! Any questions please contact me,i will do my best to serve you.
|
