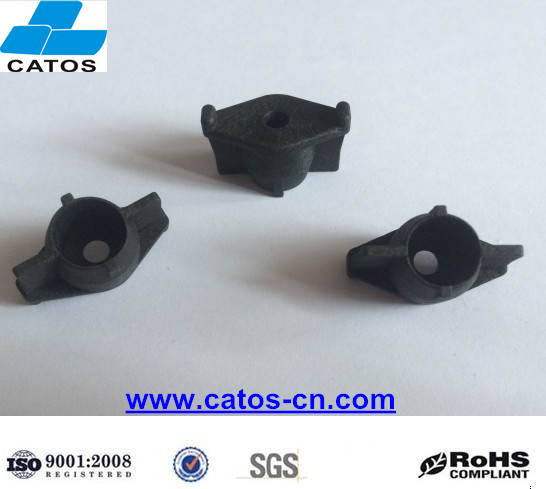

#55 Hold down clamps for solder pallet and SMT fixture in PCB Assembly with competitive price
Currently #55 is only plastic part available. Because this part was new product which one of our clients sent to us. They didnot provide sleeve ,spring ,screw etc. So currently #55 is without sleeve ,spring ,screw etc.Our engineers need to design and research the accessories specially for it.It need enough time to deal with.
Quick Details
Place of Origin: Guangdong, China (Mainland)
Model Number: CATOS-HD#55-NEW
Usage: Postion and Fixed
Material: Plastic
Standard or Nonstandard: NON-Standard
Type: Double Side Hold downs
Application: Wave solder pallet accessories
Weight of a set: 7g
Service: technical drawing is available
Sample: available for free
Certificate: FTS report
Specifications
sold pallet hold down 1.Free samples 2.Hight temperature resistent. 3.Position PCB substrate to avoid from floating
I.Features
1)Designed specifically for use in wave solder operations
2)Working temperature: 200degree, max 280degree (10~20s).
3)The action is to press PCB board to protect it from floating and lifting under wave solder process so as to create excellent solder tin.
II.Function and Application
Used to be positioned PCB substrate in wave solder pallets, fixtures and stencils to protect PCB substrate from floating and lifting.
III.Structure
|
MATERIAL : |
High temperature polymer |
|
TEMPERATURE RATING : |
(>200° C) |
|
HARDWARE : |
Fixing pre-assembled with,
|
IV.Service:
1).Technical Drawing of #55 holddowns is available.
2).CATOS markets products for the PCB Assembly tooling industry such as fixings, hold downs and clamps for solder pallets / fixtures.
V.Package Process:
1).500pcs as a bag, with packed PE bag
2).Then put into 400mm x 300mm x 300mm paper carton
3).Finally,used PE protective film packed.
Warm Notes:clients'suggestion is welcomed.
Samples and Product technical drawing is available to you for free,your inquiry is welcome! Any questions please contact me,i will do my best to serve you.
|
