#34 Single Side Holddowns Clamps for SMT reflow fixture /Holder fasteners
Quick Details
Place of Origin: Guangdong, China (Mainland)
Model Number: CATOS-HD#34
Usage: Position and Fixed
Material: Plastic
Structure: Spring Clamp
Standard or Nonstandard: Standard
Product Parts: A set of 4 parts

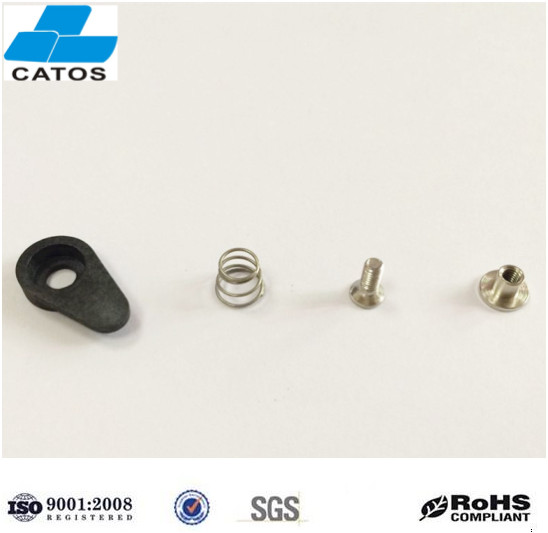

Included items of a set: a screw, a spring ,a sleeve and a plastic part
Type: Single Side Hold downs
Application: Wave solder pallet accessories
Weight of a set: 5g
Service: technical drawing is available
Sample: available for free
Certificate: FTS report
Specifications
1.Free samples
2.Hight temperature resistant.
3.Clamps for SMT fixture to hold PCBA
I. Features
1) .Designed specifically for use in SMT reflow solder operations
2) .Mostly made from plastic and Stainless steel
3).It is clamped on SMT fixture to hold PCBA.
II. Function and Application
#34 is clamped on SMT fixture to hold PCBA
III.Structure
|
MATERIAL : |
High Temperature Resistant Material for SMT reflow solder fixture
|
|
TEMPERATURE RATING : |
(>200° C) |
|
DRAWING : |
Available for you
|
IV.Service:
1).Technical Drawing of #34 holddowns is available.
2).CATOS markets products for the PCB Assembly tooling industry such as fixings, hold downs and clamps for solder pallets / fixtures.
V.Package Process:
1).500pcs as a bag, with packed PE bag
2).Then put into 30cmx 25cm x 15cm or bigger paper carton
3).Finally,used PE protective film packed.
Warm Notes:clients'suggestion is welcomed. |
