Specifications
wave solder pallet material
1.operating temperature up to 384 degree
2. Less distortion
3. Superior dimensional stability
About Wave solder pallet material with resistant high temperature and competitive price in 2014
|
Trade names: |
Alternative Durostone, Carbon Fiber Glass Reinforced Sheet |
|
Available Type : |
Sheet |
|
Color: |
Black, grey, ect. |
|
Sheets Thickness: |
3,4,5,8,10,12mm;other can be customized |
|
Size: |
1020mm x 1220mm;1220mmx2440mm |
|
Weight Data |
|
Size/sheet(mm) |
Weight/sheet(kg) |
|
1220 x 1020 x 3 |
6.9 |
|
1220 x 1020 x 4 |
9.2 |
|
1220 x 1020 x 5 |
11.5 |
|
1220 x 1020 x 6 |
13.8 |
|
1220 x 1020 x 8 |
18.4 |
|
1220 x 1020 x 10 |
23 |
|
1220 x 1020 x 12 |
27.6 |
|
2440 x 1220 x 3 |
16.5 |
|
2440 x 1220 x 4 |
22 |
|
2440 x 1220 x 5 |
27.5 |
|
2440 x 1220 x 6 |
33 |
|
2440 x 1220 x 8 |
44 |
|
2440 x 1220 x 10 |
55 |
|
2440 x 1220 x 12 |
66 |
|
Weight=length(m) x width(m) x thickness(mm) x Density(1.85g/cm3)
( eg. Weight of a sheet 1220mm x 1020mm x 3mm=1.22x1.02x3x1.85=6.9kg)
|

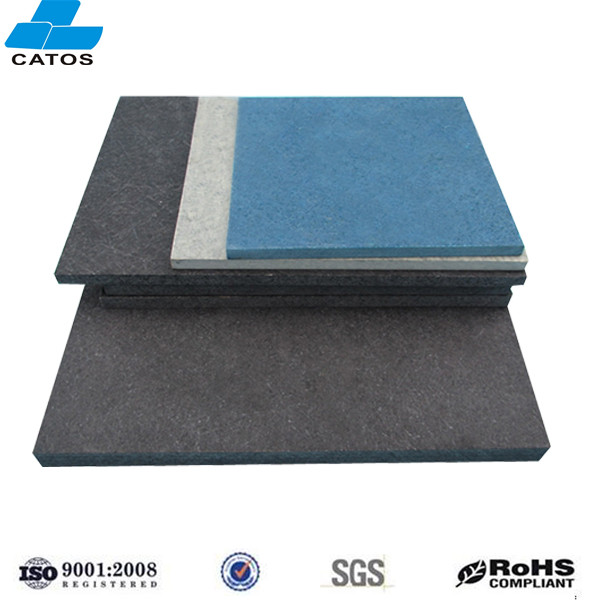

China alternative Durostone sheet is a heavy-duty glass fiber reinforced plastic which offers extreme strength and excellent electrical, thermal and chemical properties. It can keep it’s mechanical strength, smoothness and original color when continuously used under the temperature of 260°C (max. working temperature below 385°C 10~20sec).
I.Advantages:
High Temperatur alternative Durostone Materials recognized worldwide and appreciated for their high temperature resistance, excellent machinability, chemical resistance, static dissipative properties and are sensor detectable..
II.Key Features:
- Normal working temperature at 260°C, operating temperature up to 385 °C
- Less distortion, low thermal conductivity
- Superior dimensional stability, Long life
- High temperature resistance
- Resistance to chemical corrosion
- High mechanical strength
- Good machinability (low density)
III.Applications:
- Wave solder pallet and SMT carriers
- Electronic components automatic cartridge
- Solder paste screen printing
- SMT Surface Mount technology
- IR reflow curin
- Online testing jig
IV.Stock Capability
V. Packing & Delivery
1. PE protective film package;
2. Paper carton and water-proof cloth
3. Pallet and Iron straps position.
4. Weight of a pallet within 300KG .
5.Also we can depends on the requirment of customers |
VI.Fabricating Process of High Temperature Resistance Durostone Sheet
Samples is available to you for free,your inquiry is welcome!
Meanwhile,Processing Guideline and Material Specification is available to you! |
